With more than 40 years of experience, ELKON, which exports its products to more than 100 countries in 6 continents, offers 2 different capacities for trailer concrete pumps to its customers in addition to the different types of concrete batching plants.
These pumps have been designed according to the most difficult conditions and heavy work.They are high performance pumps with diesel engine and S Valve System.
Both models can deliver concrete up to 75 meters vertically or 200 meters horizontally.
Both ELKOPOMP S45 & ELKOPOMP S60 are equipped with axle and tires. Thus, it can be easily towed and transported to required points. Moreover, the concrete delivery pipes can be easily assembled and become ready to deliver concrete.
The brand of the hydraulic control unit used in ELKON Trailer Type Concrete Pumps is BOSCH-REXROTH (Germany) and the system is an open-circuit hydraulic system.
ELKON Trailer Type Concrete Pumps are equipped with high quality and chrome coated concrete delivery cylinders.
The system can easily regulate itself with power regulation when it delivers the concrete to higher distance by means of hydraulic pump which has variable flow, power regulation and axial piston.
Stainless steel control board is completely protected against environmental conditions and provides longer life time to the system.
ELKON Trailer Type Concrete Pumps are equipped with LINCOLN (Germany) automatic lubrication system which provides automatic lubrication to required points of the system and evidently extends the system spare parts life time. Besides, ELKON Trailer Type Concrete Pumps are equipped with high-pressure water pump to clean itself at the end of delivery process of the concrete.
ELKON MECHANICAL CONCRETE DISTRIBUTOR
ELKON mechanical concrete distributor is located at the end of the concrete delivery pipe which is ideal for distributing concrete to wide areas. It can distribute concrete to any point within the specified area having 8 meters radius.
To get more details about the advanced manufacturing technology and the components of ELKON Concrete Batching Plants, please visit our Why Should I Prefer ELKON? Page.
Capacity
45 m³/h
Maximum Delivery Distance
75 m (vertical) 200 m (horizontal)
Diameter of Delivery Piston
180 mm
18/09/2021
Nigerian construction company decided to expand their business and to produce their own concrete by means of a high quality and fully automated concrete batching plant. As a result...
09/04/2020
Continuously providing effective solutions to its customers, ELKON has been becoming the preferred concrete batching plant supplier in the whole world including Central America.
29/05/2017

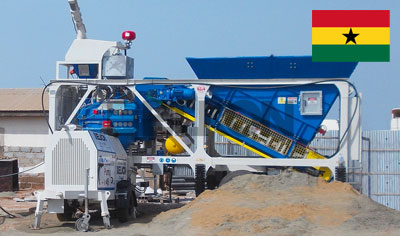

In Ghana, a construction company, which is looking for a moderately small capacity, flexible concrete batching plant which is allowing to make concrete production in various job si...
